BASIC INFO
| Type | Landing Craft Amphibian |
| Material | Aluminium |
PRINCIPAL PARTICULARS
| Length Overall | 15.35m |
| Length Waterline | 15.00m |
| Load Line Length | 15.00m |
| Moulded Beam | 4.50m |
| Maximum Draught | 0.7m @27t displacement |
| Bollard Pull | 0.5t |
CAPACITIES
| Fuel Oil | Diesel |
| Fresh Water | 200ltr |
| Black Water | 200ltr |
| Deck Cargo/Load capacity | 11,000kgs |
| Crew | 2 persons |
| Passengers | 12 persons |
MACHINERY
| Main Engines | Inboard, jets available and outboards 350hp x 2 |
| Propulsion | Outboards |
PERFORMANCE
| Max. Speed | 20- 30 kts |
| Service Speed | 18 kts |
| Class Notation | MCA cat 2/3 |
| Flag | UK |
Deck Equipment
| Deck Crane | 500kg@6m |
| Winches / Capstans | 5t tugger |
Additional Information: Suspension seating for crew and passengers, Generator, galley and heads, accommodation if required, crew seating area. Deck load 7t on wheels.

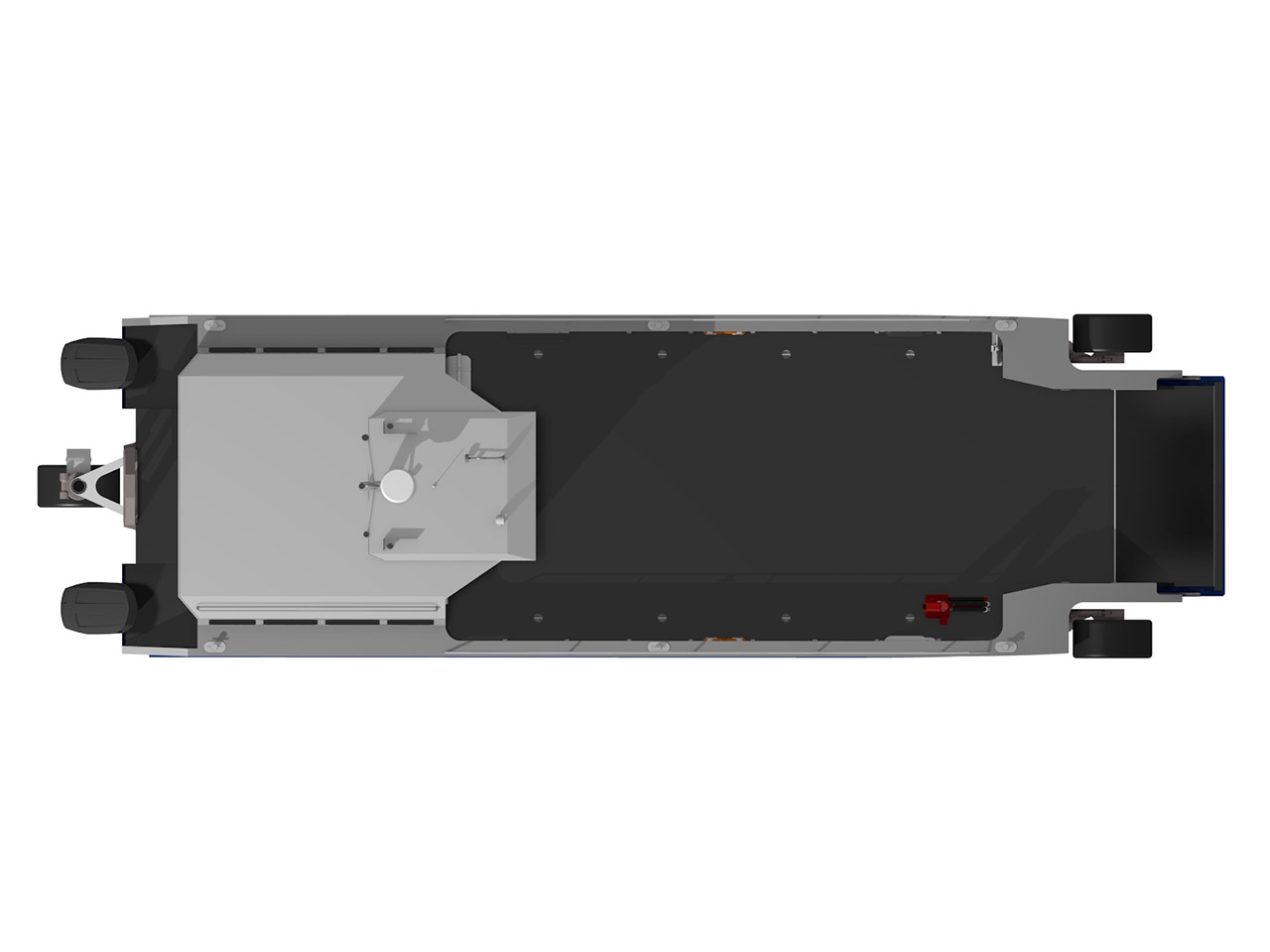

PDL Marine are proud to present the all new 15m Amphibian landing craft.
An amazing piece of engineering, the 15m Amphibian really does have it all. Large deck carrying capability in wheeled and ‘float mode’ and the ability to cover most terrains despite the tide status. Fitted with a wide array of equipment, this vessel is suitable for a multitude of tasks such a cable and buoy maintenance, harbour works and support, survey work and dive support.
The vessel can also be fitted with seating for up to 20 personnel and has sufficient speed to operate as a crew transfer vessel.
Capable of using inboard or outboards the vessel is able to reach speeds up to 30 knots.
The vessel is built to MCA category 2 / 3 standards.
