Patrol Boat 18m CG

Patrol Boat
Patrol Boat

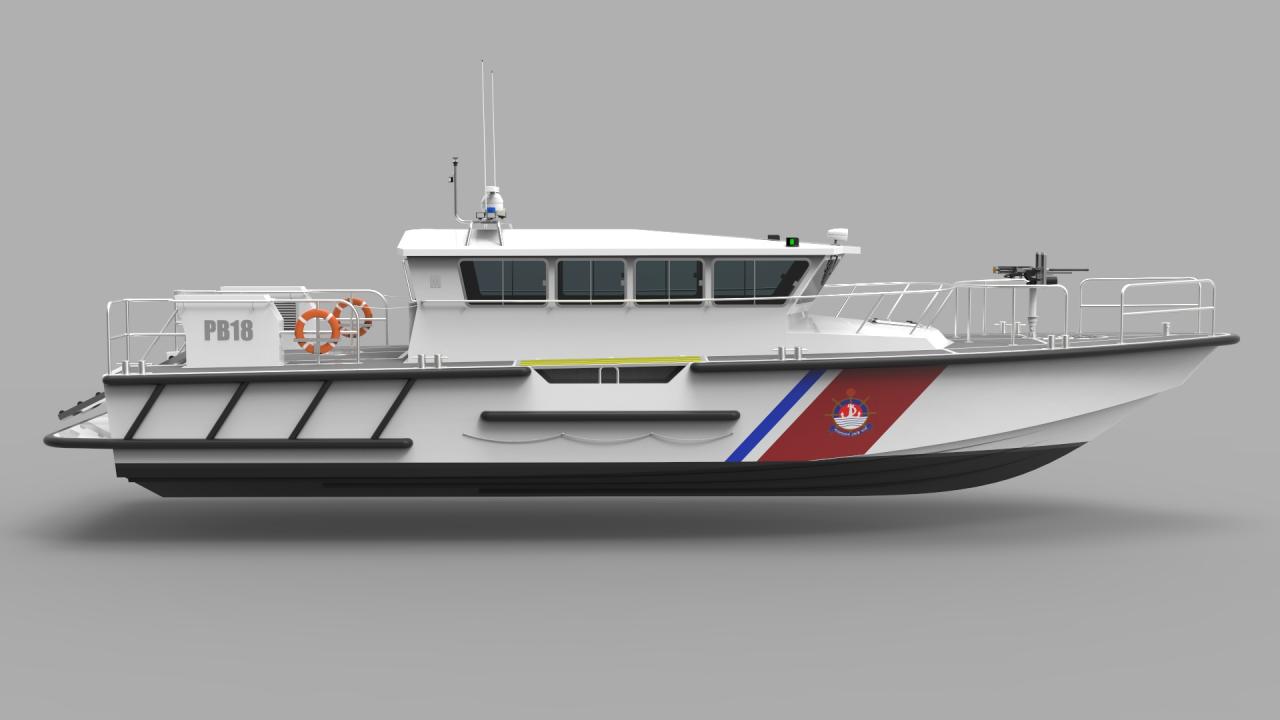

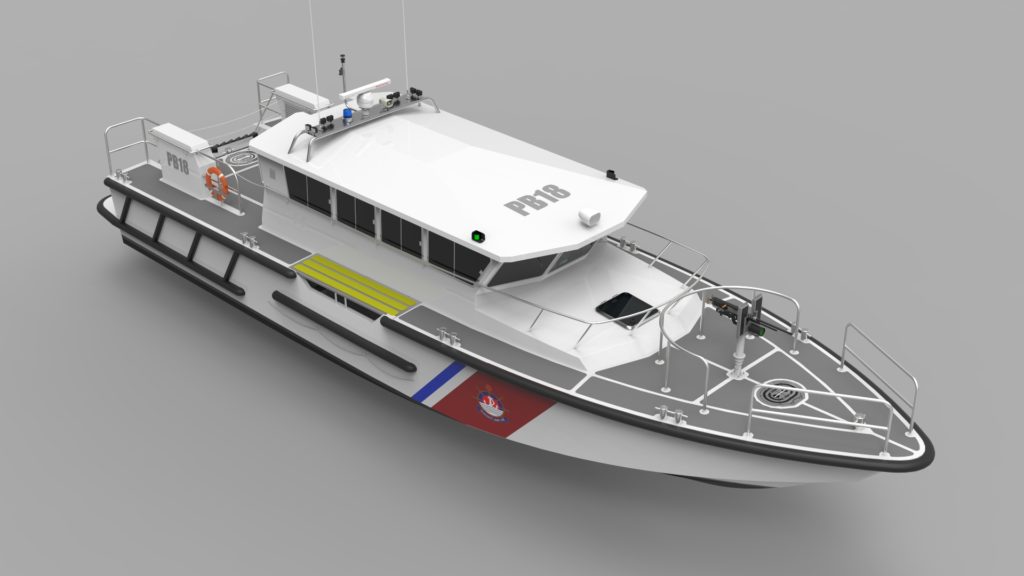

The new PB18 – One of the latest custom designs to be added to our portfolio. An 18-meter welded aluminium patrol boat designed for the coast guard but can be adapted to suit other military and law enforcement agencies as well as general patrol and observational duties. Ballistic protection is also available. The vessel sports twin 1000HP Caterpillar C18’ diesel coupled with Arneson Surface drives for the ultimate in high speed manoeuvres and stealth. Other drives and engines are available. Accommodation is for a crew of six and 6 passengers. Lloyds structural compliance (Scantlings)

BASIC INFO

Type Patrol Boat
Material Aluminium

PRINCIPAL PARTICULARS

Length Overall 19.24m
Length Waterline 15.40m
Load Line Length 18.00m
Moulded Beam 5.26m
Maximum Draught 0.85m

CAPACITIES

Fuel Oil 4546L
Fresh Water 500L
Black Water 700L
Deck Cargo N/A
Crew 6 persons Additional seating for 6 PAX

MACHINERY

Main Engines 2 x Caterpillar C18 Other engines available
Propulsion 2 x 5 Blade FPP Arneson Surface Drives

PERFORMANCE

Max. Speed 39.0 kts
Service Speed 30.0 kts
Class Notation N/A
Flag UK Flag Workboat code cat 2 (TBC)

 Back to Patrol  Download the technical Spec
